Gaylord Box Dumpers
Ensign leads the industry in Gaylord box dumper technology. With designs capable of handling, Gaylords, drums, carts, totes, bins, and many other containers Ensign has proven container discharging systems for your application. With a standard discharge height of 48 inches, Ensign’s side load container dumpers provide a quick and efficient way to keep a consistent material supply within your process. Built with only the highest quality components this Gaylord box dumper requires very little maintenance and will give you years of trouble-free operation.

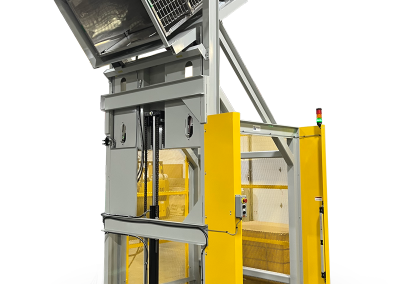

Side Load Reliant Container Dumper
Features & Options
- 1 GPM pump allowing for 2,500lbs lift capacity
- Ground entry loading
- Threaded, adjustable retainer bar
- Quick-Release Retainer Bar
- Peg style retaining system for increased flow
- Automated controls
- UHMW liners for preform and bottle dumping
- Stainless steel liners for sluggish moving materials

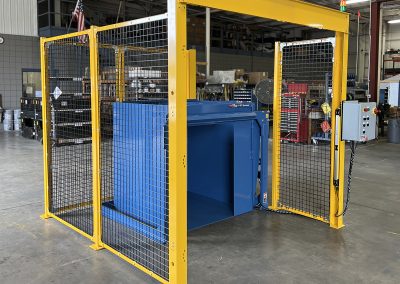

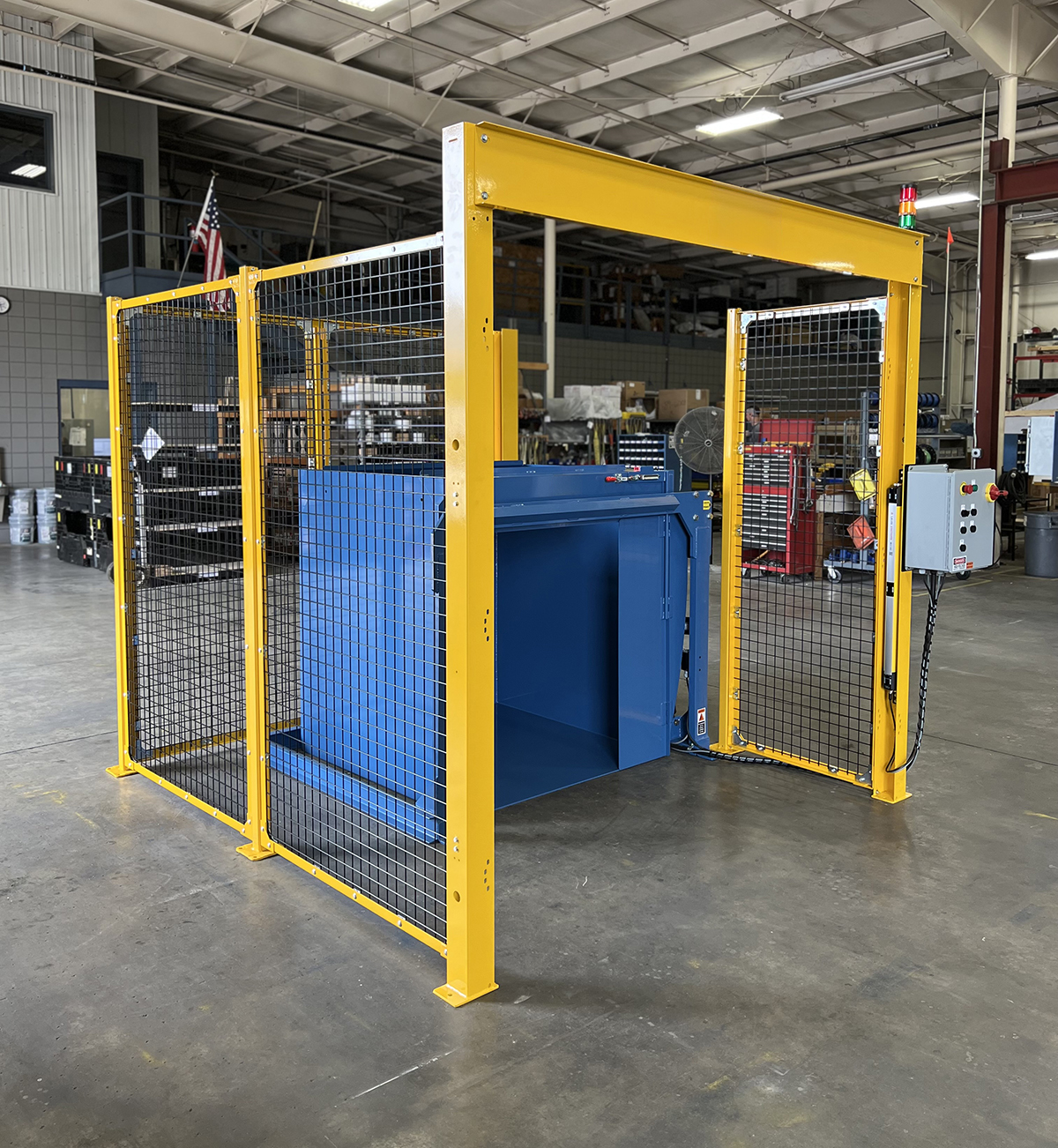

- Safety Cage with Light Screen
- Safety Cage with Swing Door
- Mechanical / Electrical Cleanout Pin
- Parker hydraulic pumps
- UL listed enclosure
- Serviceable and replaceable 2″ main pivot bearings
- Variable Speed Controls
- Up to 108″ wide, seven gauge buckets for bale dumping
- Dust Hoods and discharge gates
- Hydraulic velocity fuse for added safety
- Customer specified electrical components (Siemens, Schneider, etc.)
- Pressure gauge and LED lit solenoid cable
- Remote Pendant Controls Assembly
- Bucket Over-Travel Stop
- Cart Retainer System
- Baldor 1.5 horsepower premium efficiency motor
Product Gallery
